Moza Racing R9 V3 Direct Drive Wheel Base

• Feel detailed force feedback with consistent 9Nm torque output
• Improve control and lap consistency with direct drive precision
• Reduce latency with a fast 1000Hz USB response rate
• Customize force feedback and settings through MOZA software
• Build a clean and compact setup with a durable aluminum design

This wheelbase is ideal for beginner to intermediate sim racers looking to step into direct-drive performance without the cost or size of high-torque systems. It is well suited for PC users building their first serious rig or upgrading from gear- or belt-driven systems to achieve more accurate force feedback.

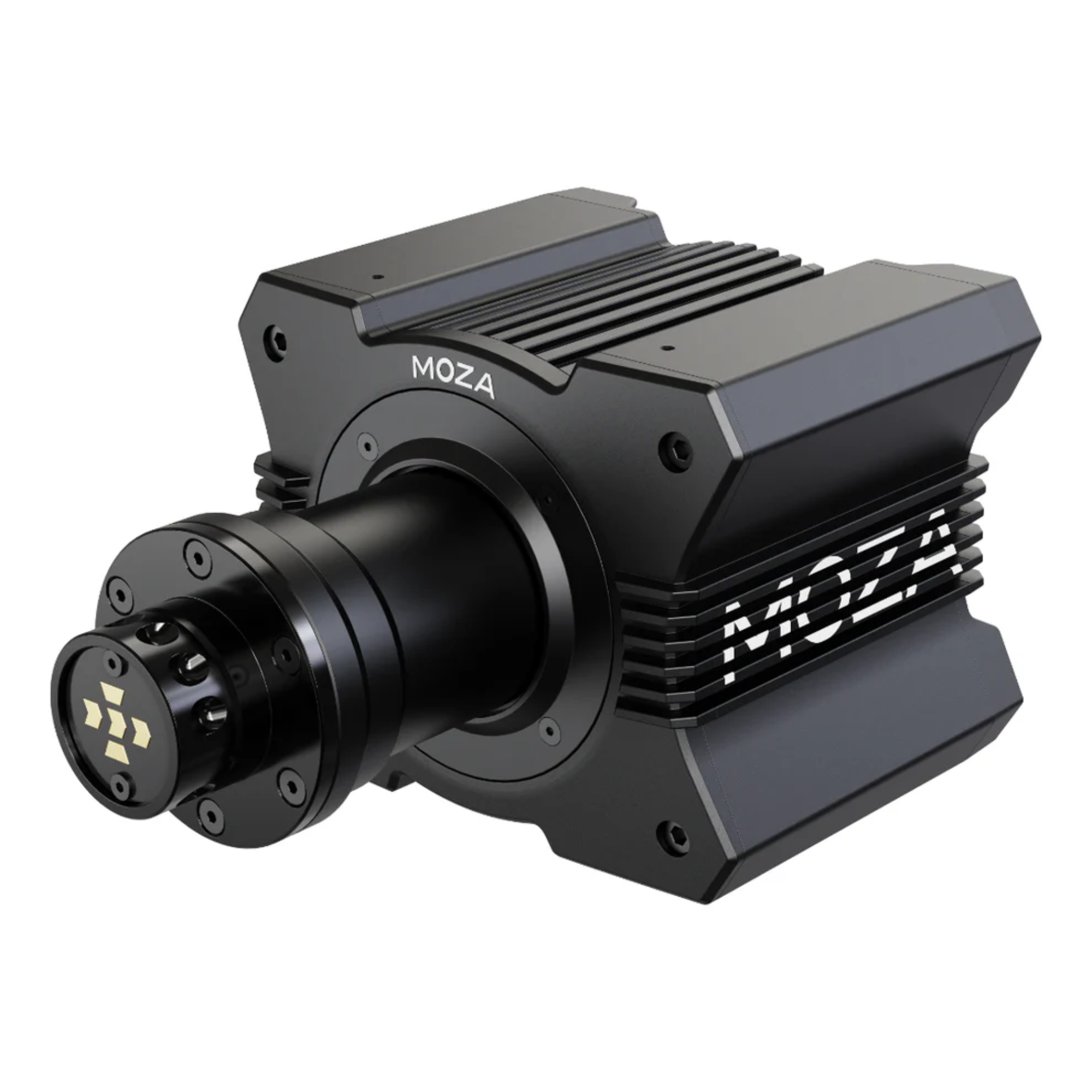

The MOZA Racing R9 V3 direct-drive wheelbase uses a professional servo motor to deliver smooth, consistent torque with no belts or gears. Its 9Nm output provides strong feedback while remaining manageable for a wide range of users. The aluminum housing ensures durability and heat management during long sessions. The system supports a limitless rotation angle and integrates with MOZA Pit House software for tuning force feedback, profiles, and lighting. A D1 spec quick release allows fast and secure wheel changes. Multiple mounting options, including bottom mount, side mount, and an optional table clamp, provide flexibility for different setups.

• Platform: PC
• Drive type: Direct drive servo motor
• Maximum torque: 9 Nm
• Maximum rotation: Unlimited
• USB refresh rate: 1000Hz
• Construction: Aluminum housing
• Dimensions: 240 x 157 x 124 mm
• Maximum power: 180W
• Input voltage: 110V to 220V AC to 36V DC
• Quick release: D1 spec

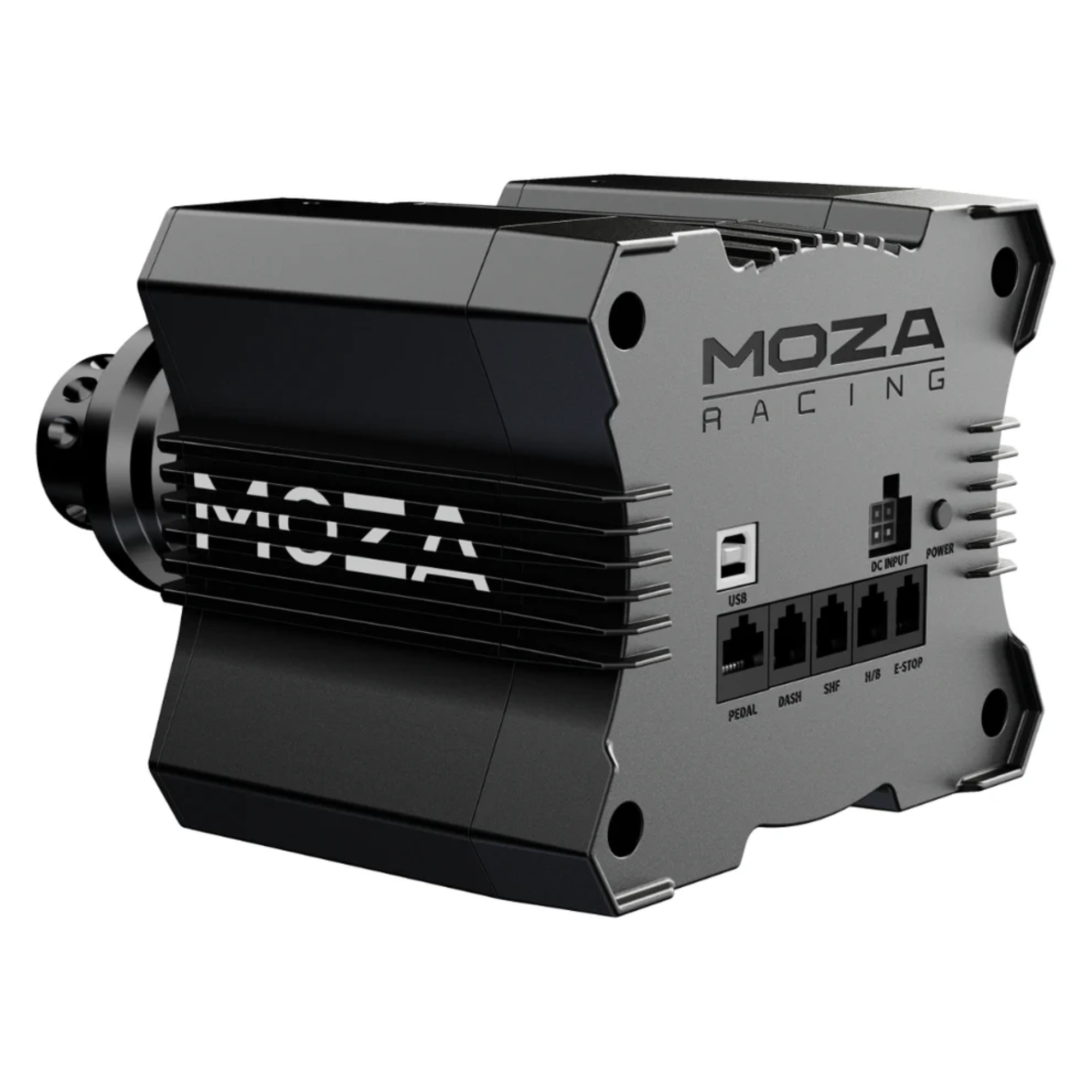

• Connectivity: Power, data, and accessory interfaces
• Mounting: Bottom mount, optional side mount and table clamp
• Software support: MOZA Pit House
• Features: App control and shifting indicator light

On track, the base delivers smooth and responsive feedback that makes it easier to feel grip changes, weight transfer, and road texture. The torque is strong enough to communicate important details without overwhelming the driver, making it a balanced option for long sessions. The MOZA Racing R9 V3 direct drive wheel base 9Nm sim racing wheel base provides a noticeable step up in realism compared to entry-level systems while remaining approachable and easy to manage.
