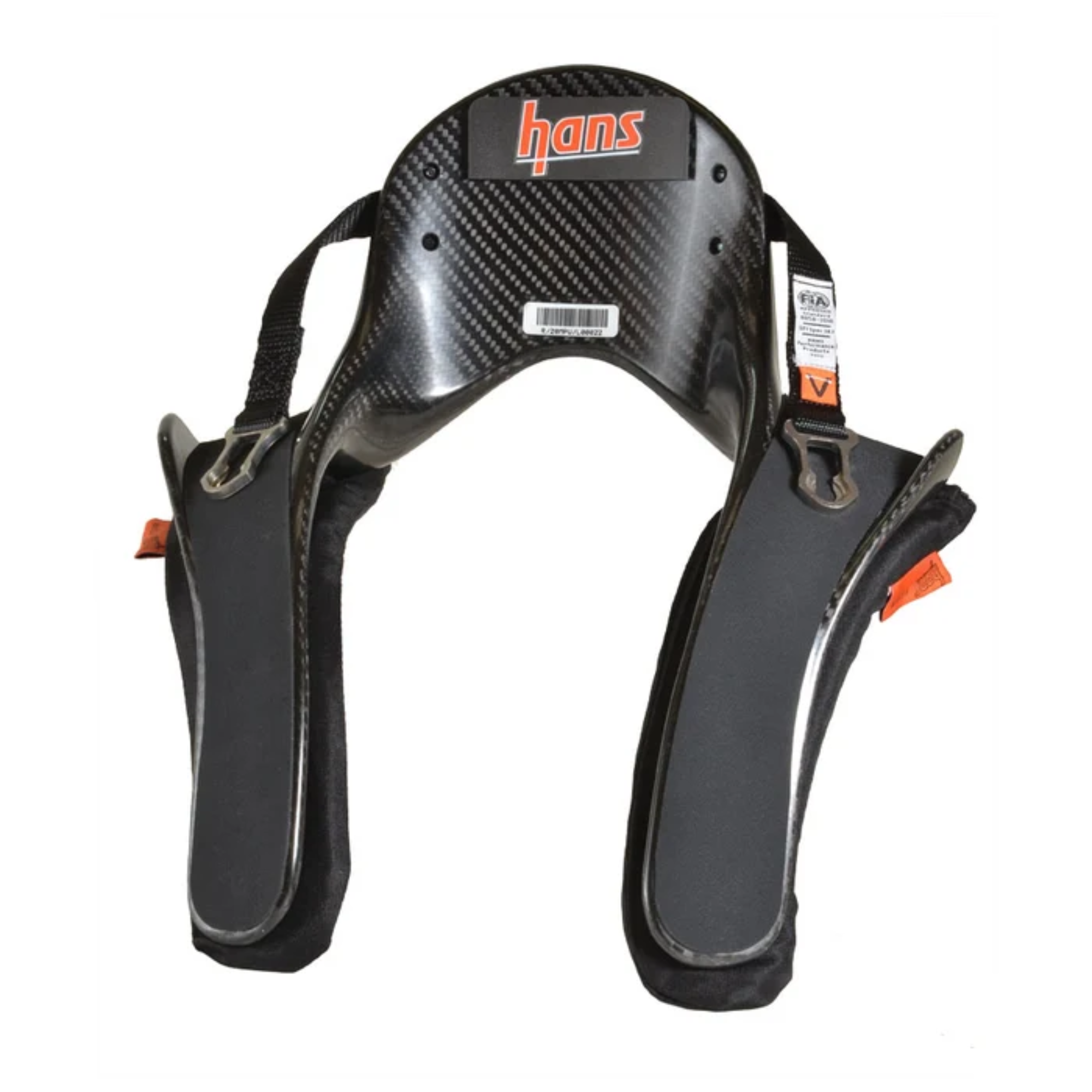

The HANS Pro Ultra Lite 20M FIA Device with Medium, Post Anchors.

HANS Pro Ultra Lite 20M FIA Device - Medium, Post Anchors

$1,239.95
By HANS
SKU: HADK14236-31-FIA
9 in stock, ready to ship

The Hans Pro Ultra Lite Device features a 100% carbon-fiber, hollow-core construction that delivers 100 grams of weight savings over the Hans Ultra. Weighing under one pound, it is constructed from aerospace-grade carbon fiber and is fully FIA-approved. Its low-profile design ensures easier cockpit entry and exit in tight race cars, while the standard sliding tether provides optimal driver visibility without sacrificing head and neck protection.

Features

• FIA certified
• Ultra-lightweight carbon fiber, hollow-core construction
• Easy vehicle entry/exit, even in smaller vehicles
• FIA rating is equivalent to SFI 38.1 rating and accepted by all US and International Road Racing organizations.
• M6-style anchor installs directly into SA2015 and later helmets.
• Note: Medium device with padding removed weighs 0.97 lbs. The Hans Pro Ultra is currently available only with a 20-degree layback, in sizes Medium or Large.
Technical Details

• Rating: FIA 8858-2010
HANS Installation Instructions

Most modern Snell SA2015 and later and/or FIA8858/FIA8860/FIA8859 helmets have threaded mounting posts bonded into the helmet shell. This allows for very quick and easy installation without the need for specialty tools or helmet modification. If your helmet does not have these threaded mounting points, please get in touch with us for assistance.

Tools needed for installation:

  • 5/32 or 4mm Allen Key (put down your impact gun - either size will fit)
  • Hans Anchor Key/Wrench (not included) OR Hans Tether attached to your device

Instructions:

  1. Using the entire anchor, thread it onto the terminal on the helmet. Note that threadlocker has been pre-applied to the anchor's thread. If transferring the anchor to a new helmet, fresh threadlocker is recommended.
  2. Hand-tighten the screw until snug, making sure the point on the anchor faces rearward. When installing Quick-Click-style anchors, the opening hasp should point rearward. (Click here for sample image)
  3. Tighten the screw a ¼ turn past snug. You may need to hold the anchor still while tightening to ensure the point on the anchor remains facing rearward. This can be accomplished with the flat edge of a connected tether or using the specialty Hans Anchor Key (or similar flat spanner wrench). Note: Not a lot of force is needed to tighten this screw - if you are having problems keeping the point on the anchor in place, you're probably over-tightening! Overtightening can easily break the bonded anchor terminal and/or otherwise damage your helmet!
  4. Test your installation by connecting the Hans tether to the anchor and makeing sure it slides on/off with little resistance. If the anchor is installed too tightly, it will feel tight.
  5. That's it!
