The HANS III 30L FIA Device - Large, Post-Anchor.
The hans sizing guide size chart for hans devices. all-groups

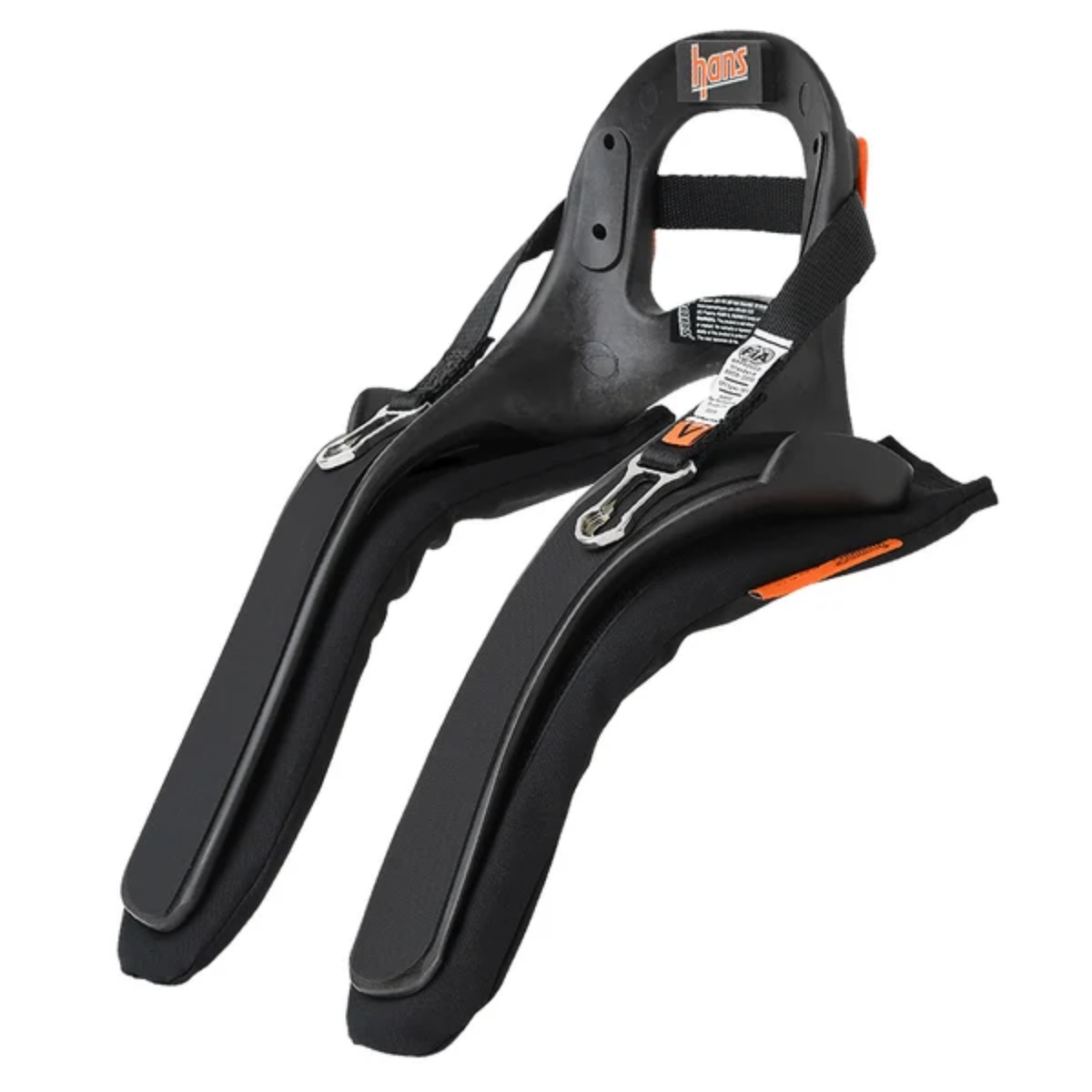

HANS III 30L FIA Device - Large, Post-Anchor

$569.95
By HANS
SKU: HADK18347-31-FIA
27 in stock, ready to ship

The Hans III Device features a hollow-collar design with strategic reinforcements, delivering the full safety of traditional head and neck restraints in the lightest, most comfortable injection-molded Hans Device available. Its sculpted round collar, similar to the Sport 2, improves driver comfort and simplifies vehicle entry and exit.

The Model 30 configuration offers an increased arm angle engineered specifically for open-cockpit and Formula-type cars with reclined seating. This adjusted angle provides a superior fit for drivers with broader chests and eliminates helmet interference by preventing the collar from pushing against the back of your head.

Features

• Sliding Tethers standard
• FIA-approved
• Injection-molded superstructural construction
• Hollow collar minimizes weight
• Weighs 200g less than previous models
• Hollow collar to minimize weight
• Includes 2 M6 Anchors (enough for one helmet)
• FIA rating is equivalent to SFI 38.1 rating and accepted by all US and International Road Racing organizations.
Technical Details

• Rating: FIA 8858
HANS Installation Instructions

Most modern Snell SA2015 and later and/or FIA8858/FIA8860/FIA8859 helmets have threaded mounting posts bonded into the helmet shell. This allows for very quick and easy installation without the need for specialty tools or helmet modification. If your helmet does not have these threaded mounting points, please get in touch with us for assistance.

Tools needed for installation:

  • 5/32 or 4mm Allen Key (put down your impact gun - either size will fit)
  • Hans Anchor Key/Wrench (not included) OR Hans Tether attached to your device

Instructions:

  1. Using the entire anchor, thread it onto the terminal on the helmet. Note that threadlocker has been pre-applied to the anchor's thread. If transferring the anchor to a new helmet, fresh threadlocker is recommended.
  2. Hand-tighten the screw until snug, making sure the point on the anchor faces rearward. When installing Quick-Click-style anchors, the opening hasp should point rearward. (Click here for sample image)
  3. Tighten the screw a ¼ turn past snug. You may need to hold the anchor still while tightening to ensure the point on the anchor remains facing rearward. This can be accomplished with the flat edge of a connected tether or using the specialty Hans Anchor Key (or similar flat spanner wrench). Note: Not a lot of force is needed to tighten this screw - if you are having problems keeping the point on the anchor in place, you're probably over-tightening! Overtightening can easily break the bonded anchor terminal and/or otherwise damage your helmet!
  4. Test your installation by connecting the Hans tether to the anchor and makeing sure it slides on/off with little resistance. If the anchor is installed too tightly, it will feel tight.
  5. That's it!
