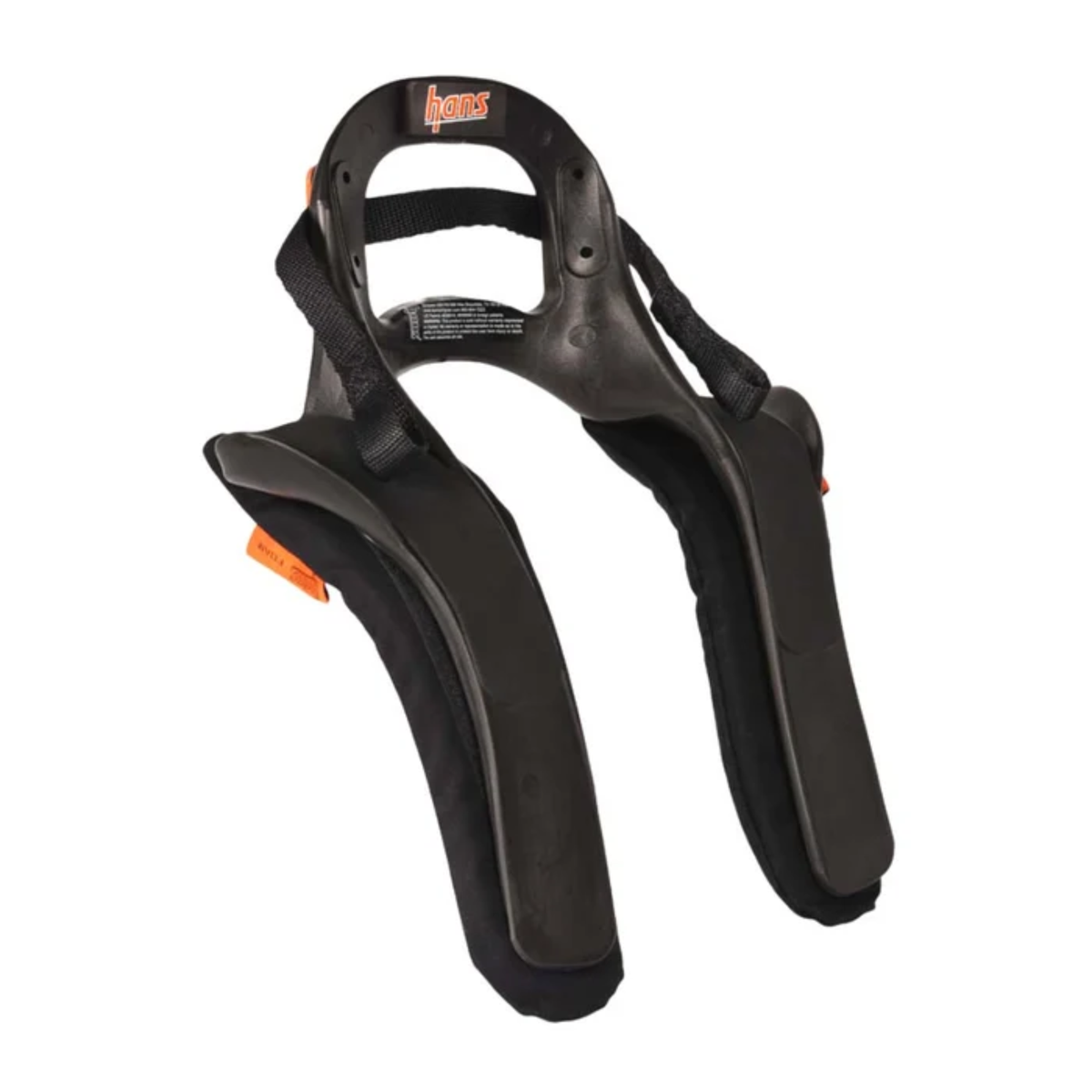

The HANS III 20M SFI Device - Medium, Quick Click.

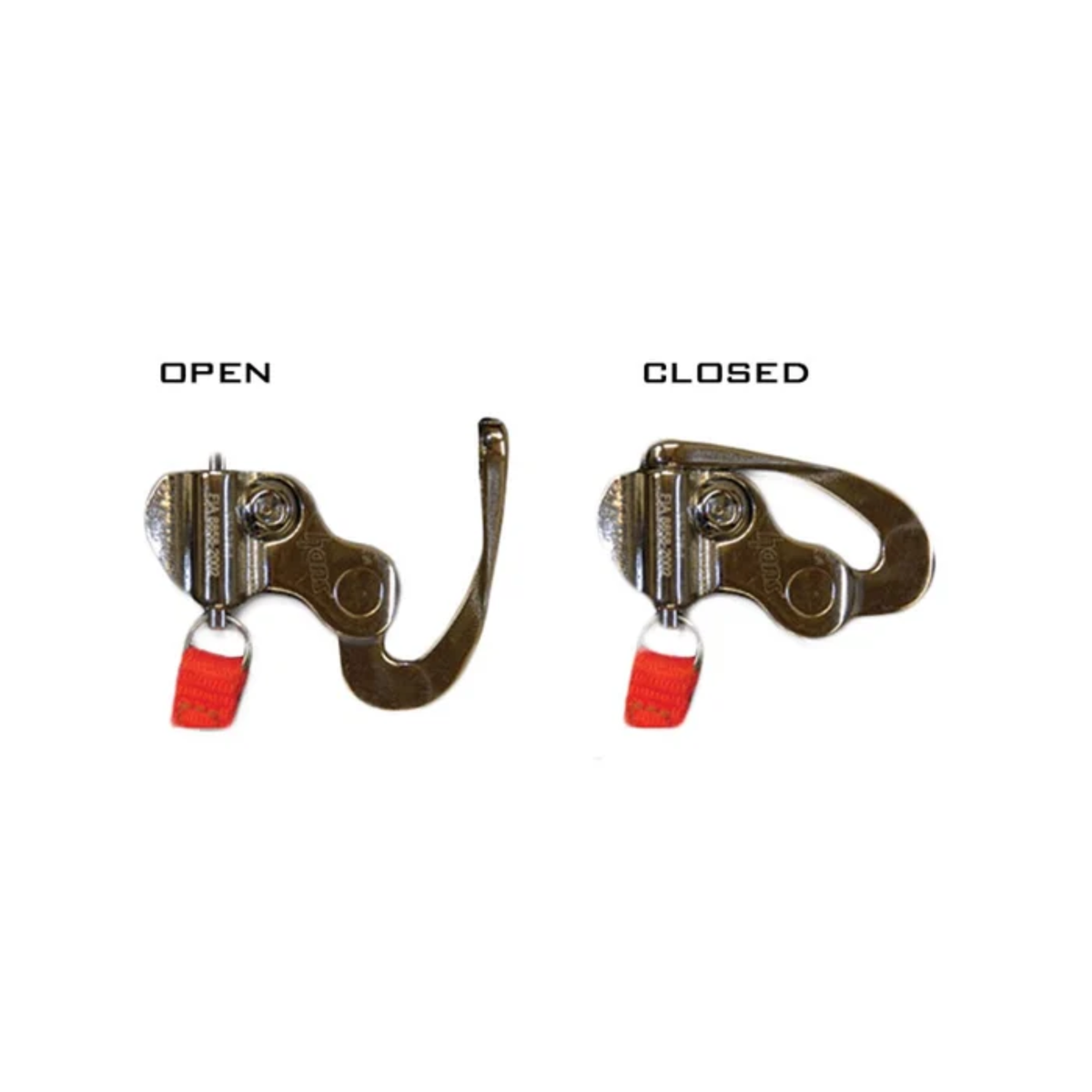

A diagram for the HANS III 20M SFI Device - Medium, Quick Click showing the piece open and closed.
2% off

HANS III 20M SFI Device - Medium, Quick Click

$449.95 $459.95
By HANS
SKU: HADK14237-41-SFI
9 in stock, ready to ship

Experience unparalleled safety and comfort with the SFI 38.1-rated Hans III Device. Featuring a specially engineered hollow collar, this model substantially reduces weight without compromising its exceptional strength. It comes equipped with Quick Click-style connectors, ensuring fast removal for effortless entry and exit, even in the tightest race cars. Thanks to specific design reinforcements, it delivers the proven protection of every Hans Device while standing out as the lightest, most comfortable injection-molded Hans Device ever created.

Features

• Sliding Tethers standard
• SFI certified with Quick-Click style anchors.
• Injection-molded super structural construction
• Hollow collar minimizes weight
• Weighs 200g less than the Sport 2 and 100g more than the • Carbon Pro models
• Hollow collar to minimize weight
• Includes 2 M6 Anchors (enough for one helmet)
Technical Details

• Rating: SFI 38.1
• Part Number: HADK14237-41-SFI, HADK14247-41-SFI
HANS Installation Instructions

Most modern Snell SA2015 and later and/or FIA8858/FIA8860/FIA8859 helmets have threaded mounting posts bonded into the helmet shell. This allows for very quick and easy installation without the need for specialty tools or helmet modification. If your helmet does not have these threaded mounting points, please get in touch with us for assistance.

Tools needed for installation:

  • 5/32 or 4mm Allen Key (put down your impact gun - either size will fit)
  • Hans Anchor Key/Wrench (not included) OR Hans Tether attached to your device

Instructions:

  1. Using the entire anchor, thread it onto the terminal on the helmet. Note that threadlocker has been pre-applied to the anchor's thread. If transferring the anchor to a new helmet, fresh threadlocker is recommended.
  2. Hand-tighten the screw until snug, making sure the point on the anchor faces rearward. When installing Quick-Click-style anchors, the opening hasp should point rearward. (Click here for sample image)
  3. Tighten the screw a ¼ turn past snug. You may need to hold the anchor still while tightening to ensure the point on the anchor remains facing rearward. This can be accomplished with the flat edge of a connected tether or using the specialty Hans Anchor Key (or similar flat spanner wrench). Note: Not a lot of force is needed to tighten this screw - if you are having problems keeping the point on the anchor in place, you're probably over-tightening! Overtightening can easily break the bonded anchor terminal and/or otherwise damage your helmet!
  4. Test your installation by connecting the Hans tether to the anchor and makeing sure it slides on/off with little resistance. If the anchor is installed too tightly, it will feel tight.
  5. That's it!
