The AIM MXG 1.3 Dash Data Logger.

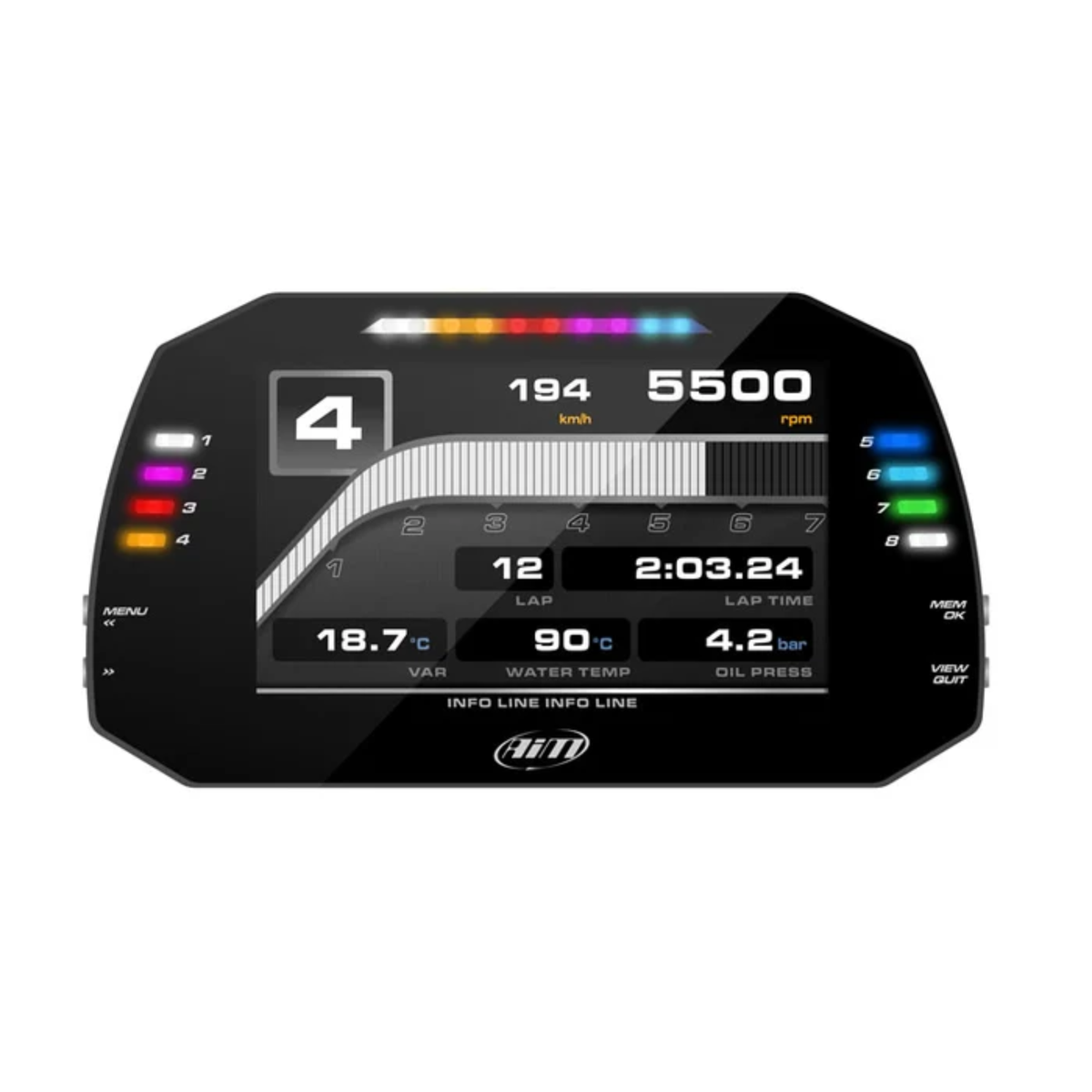

The AIM MXG 1.3 Dash Data Logger with a black display showing the gear, speed, rpm, lap count, lap time, water temp and oil pressure as well as shift lights.

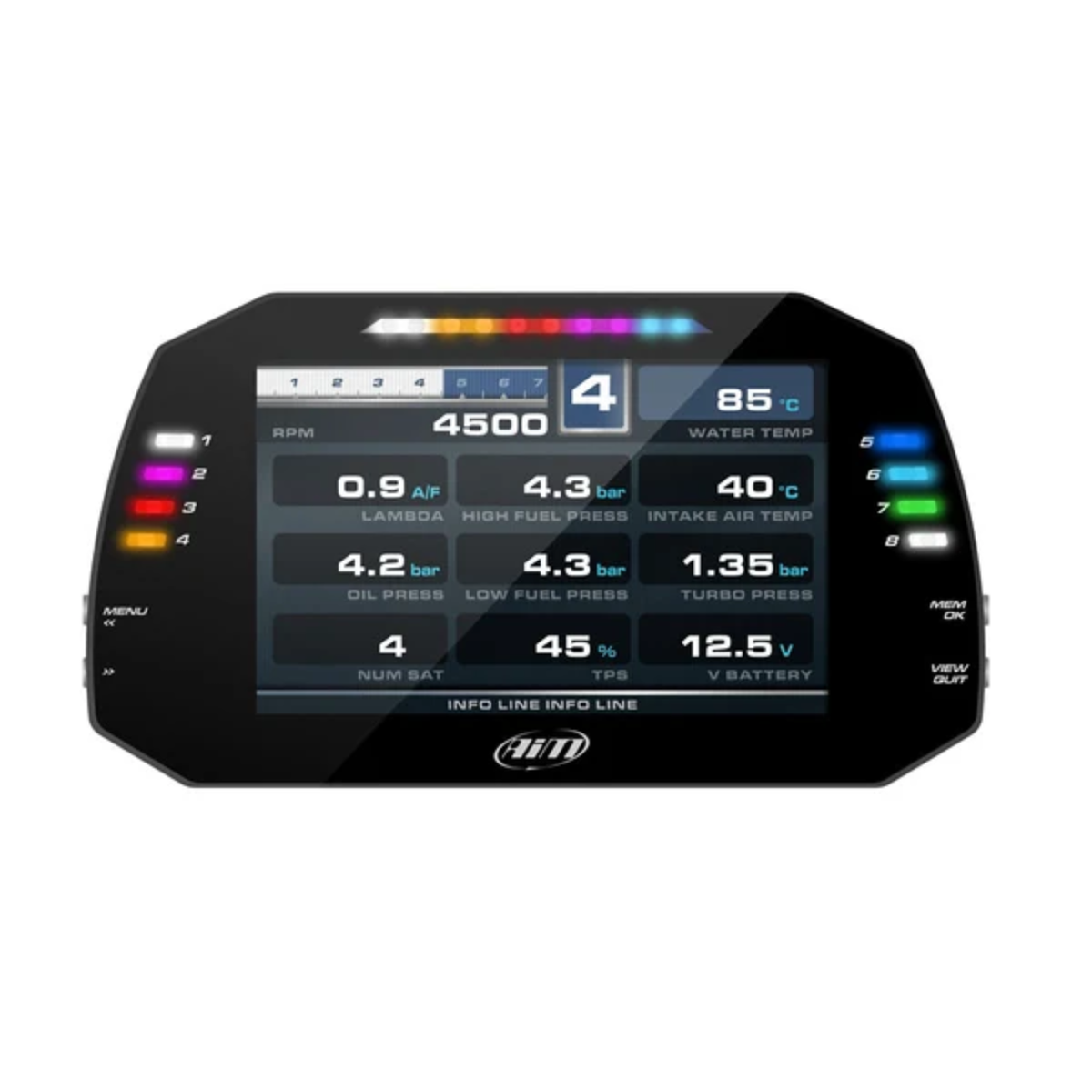

The AIM MXG 1.3 Dash Data Logger displaying motorsports information such as RPM, Gear, Water Temp, LAMBDA, High Fuel Pressure, Intake Air Temp, Oil pressure, Low Fuel Pressure, Turbo Pressure, Num Sat, TPS and Battery Voltage.

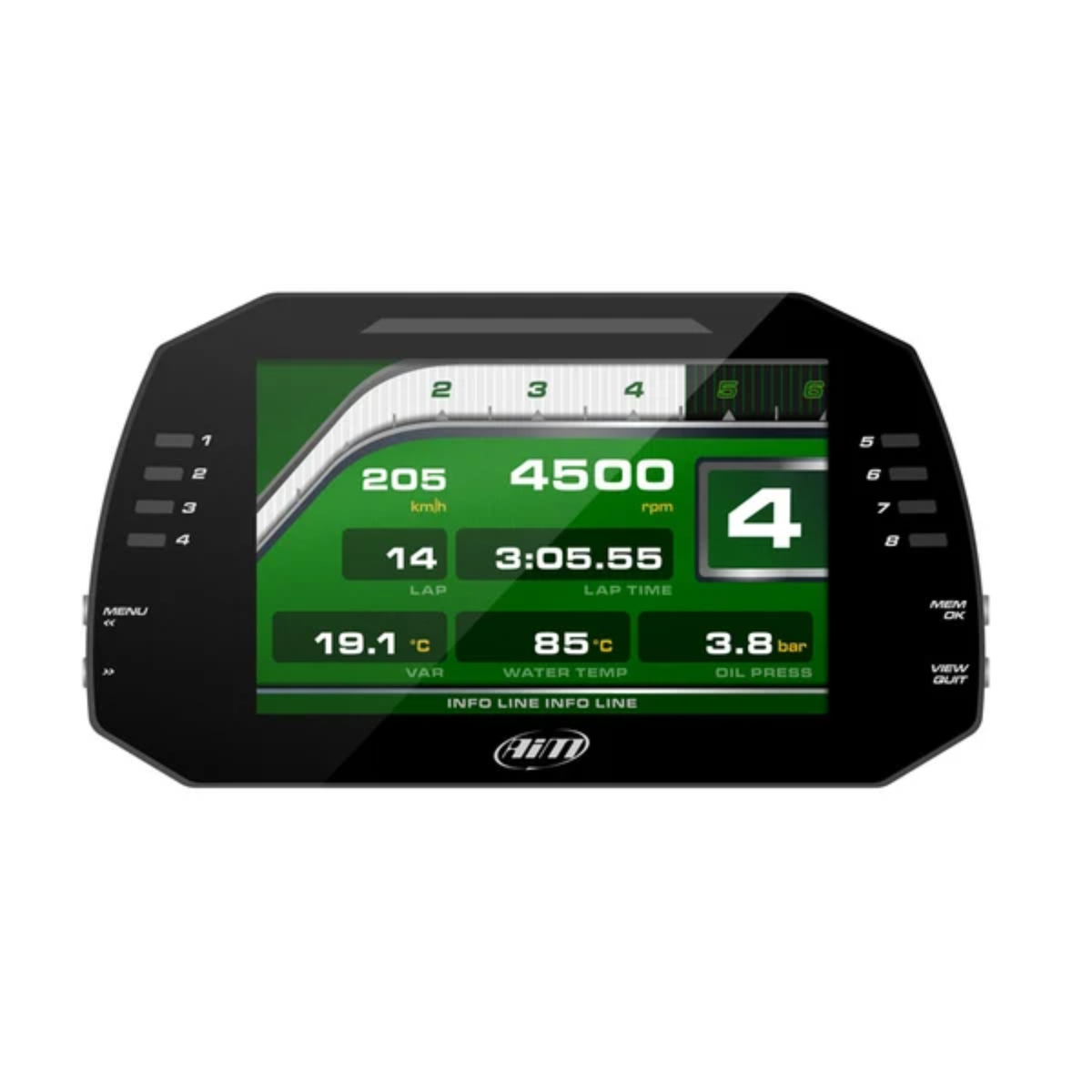

The AIM MXG 1.3 Dash Data Logger with a green racing display showing speed, rpm, gear, lap count, lap time, water temp and oil pressure.

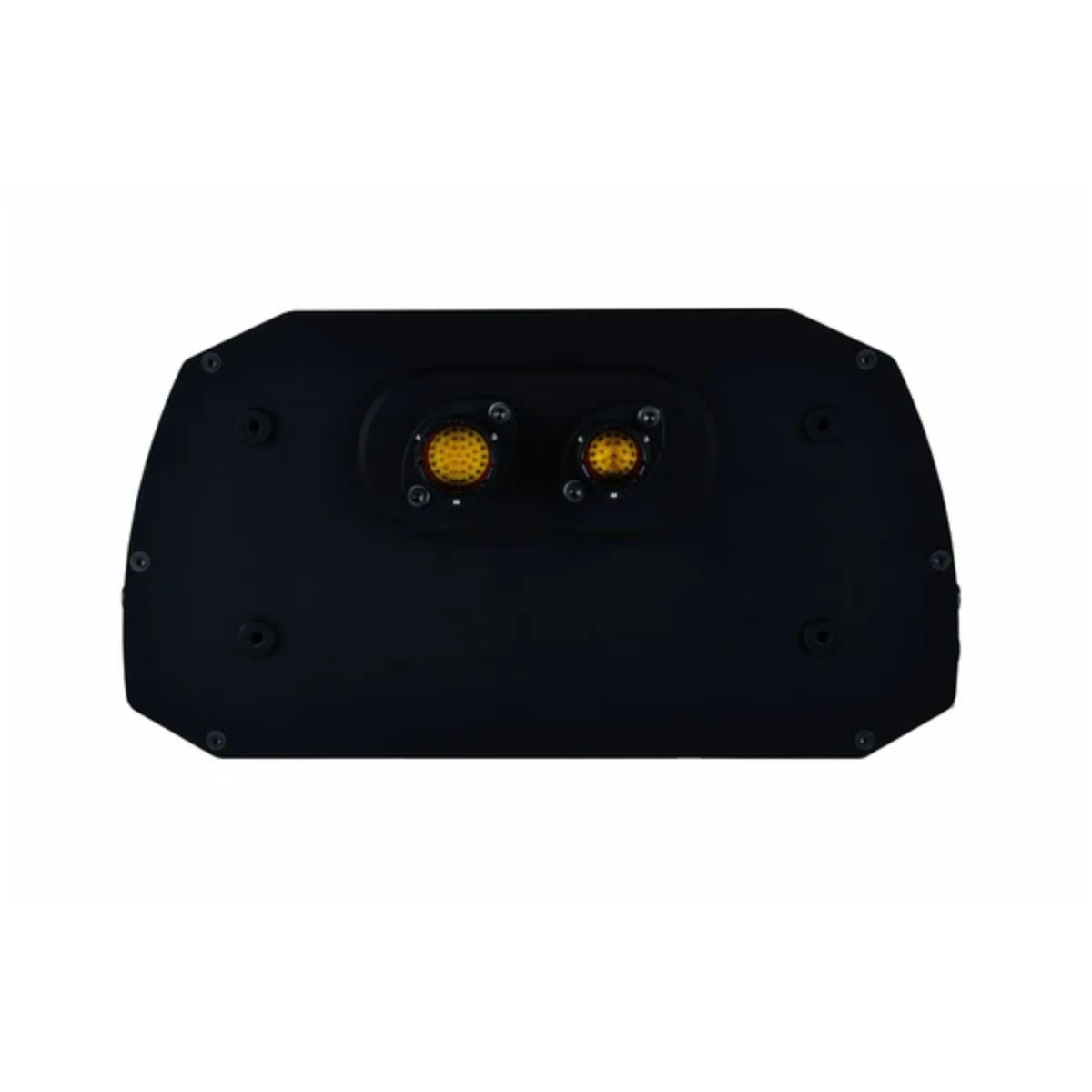

The back of the AIM MXG 1.3 Dash Data Logger.

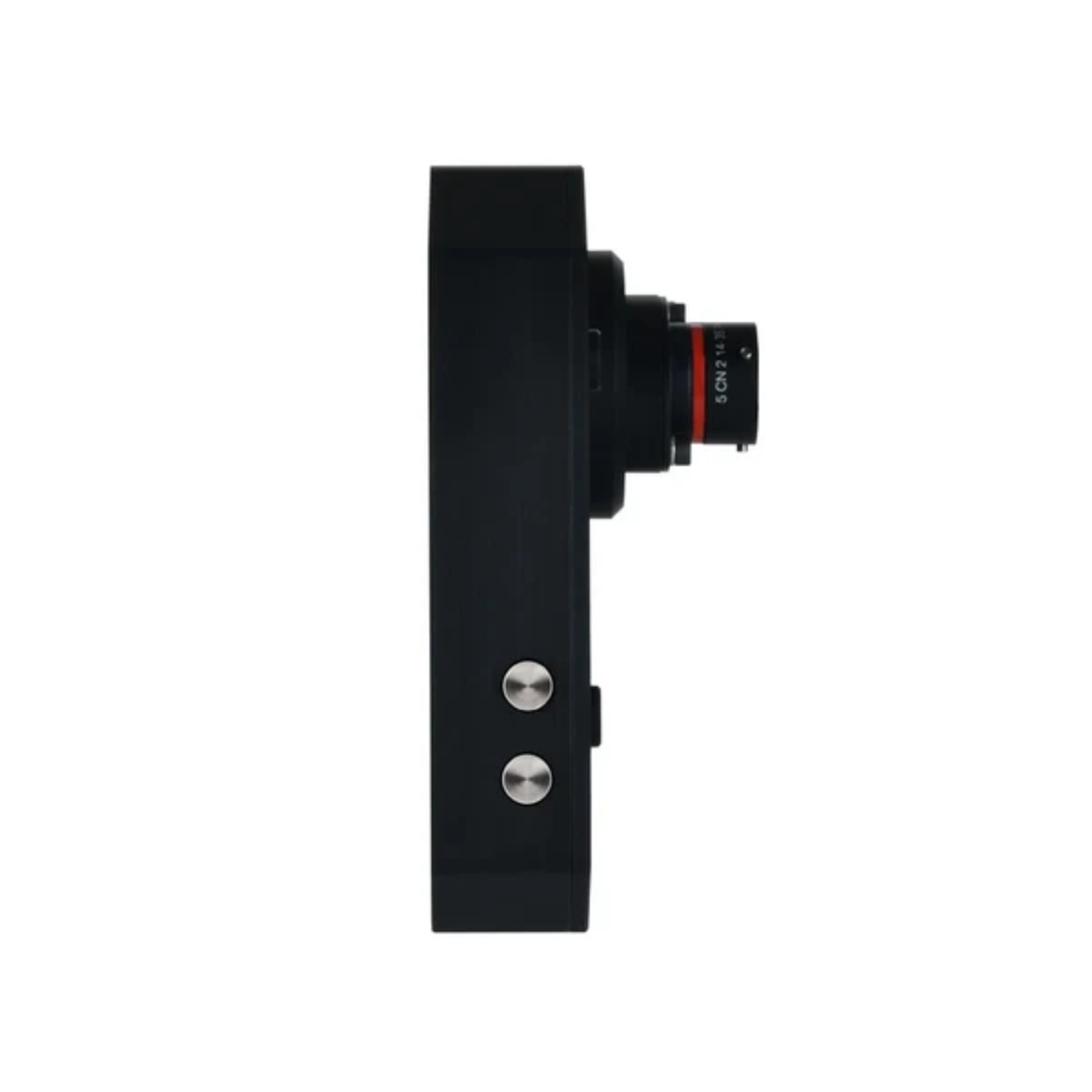

The side of the AIM MXG 1.3 Dash Data Logger.

AIM MXG 1.3 Dash Data Logger

$3,249.00
By AIM
Size
1 in stock
SKU: AIMXA4MXG12A-4

As an evolution of the original MXG, the AiM MXG 1.3 dash logger represents the future of in-car data systems. It features a full-color, high-contrast, extra-wide 7" TFT LCD display with fully customizable pages, allowing you to define exactly which data is shown from a vast library of styles. Push-button selectors on the side ensure easy navigation, while the eight user-configurable alarm LEDs and an advanced multicolor shift light can be tailored with custom colors, flashes, and messages.

Features

• ECU Connection: Capable of acquiring data directly from the vehicle's ECU.
• Analog & Digital Inputs: 8 Analog inputs record up to 1000x per second each. 6 Digital inputs are also included.
• GPS Module: AiM's powerful GPS05 module is included in the kit for accurate lap-time and track position data
• Secondary CAN-line: CAN2 line manages data from additional modules, such as ABS, traction control, etc.
• Internal Accelerometer & Gyro: Internal 3-Axial accelerometer and a gyroscope for crucial vehicle motion data.
• Math Channels: Configure the dash to immediately display Math Channel values, such as brake bias or a calculated gear.
Technical Details

• Part Number: AIMMXG
• Manufacturer: X19MXGGPS400
