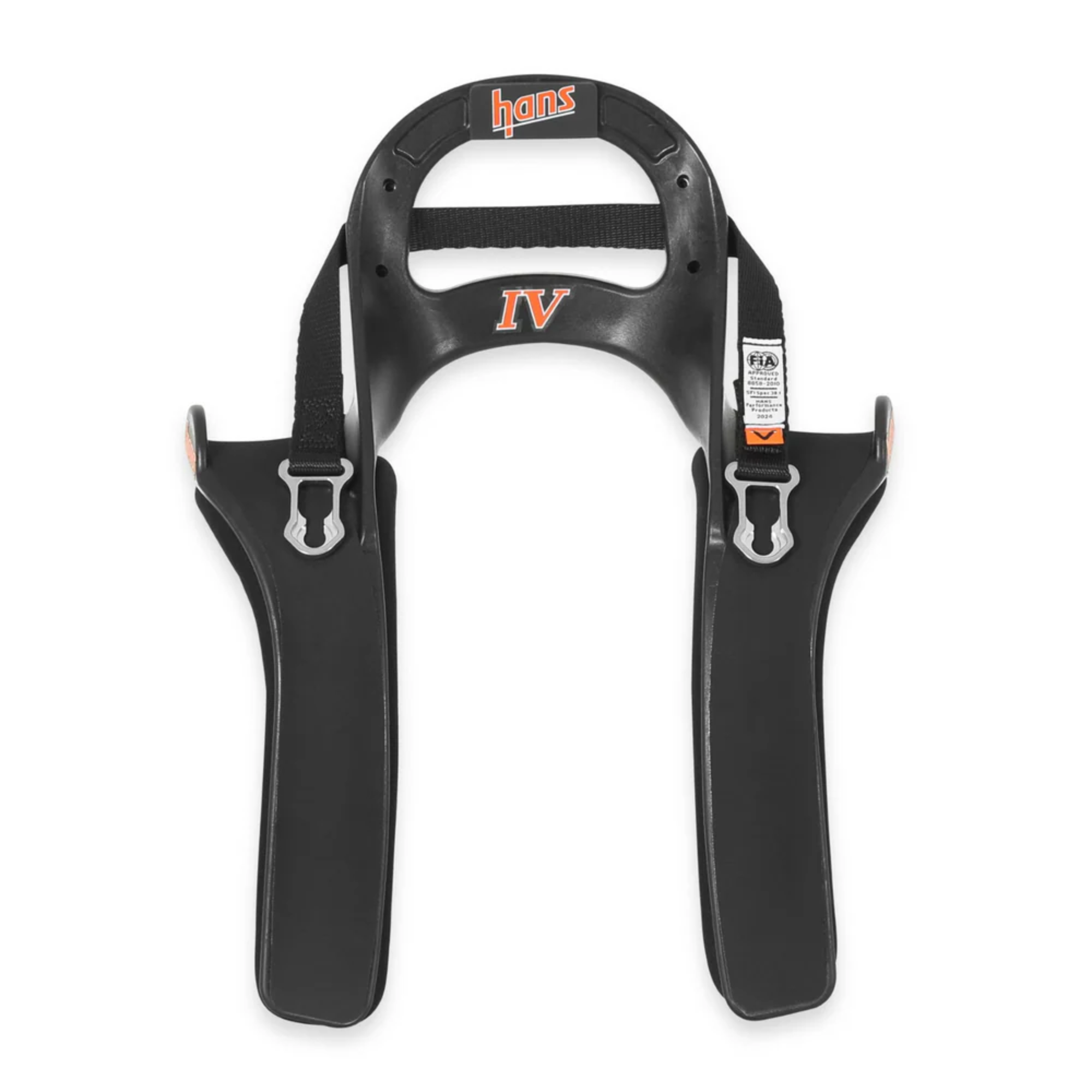

The Hans IV SFI/FIA Device - Post Anchor from HANS shown from the front.

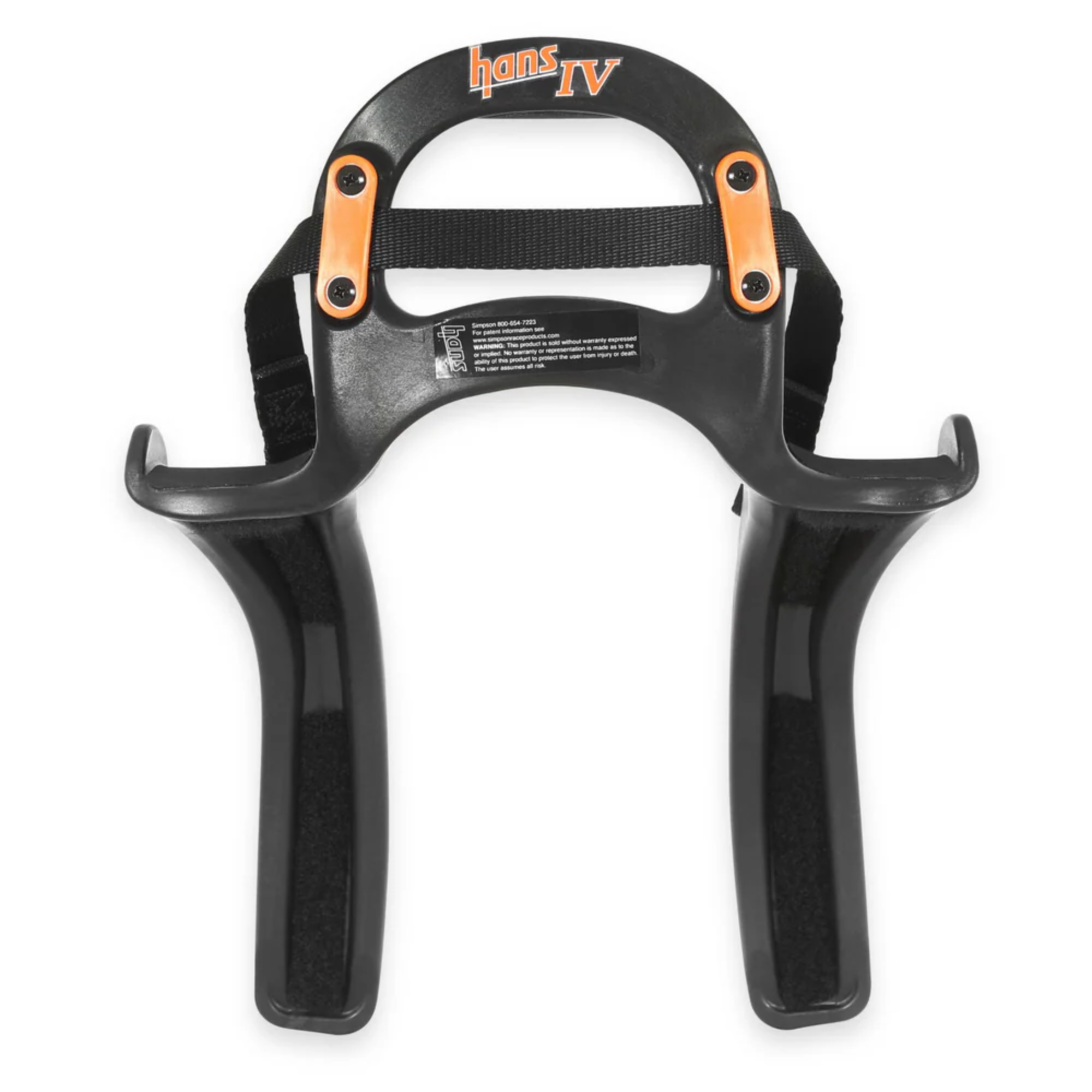

The Hans IV SFI/FIA Device - Post Anchor from HANS shown from the back.

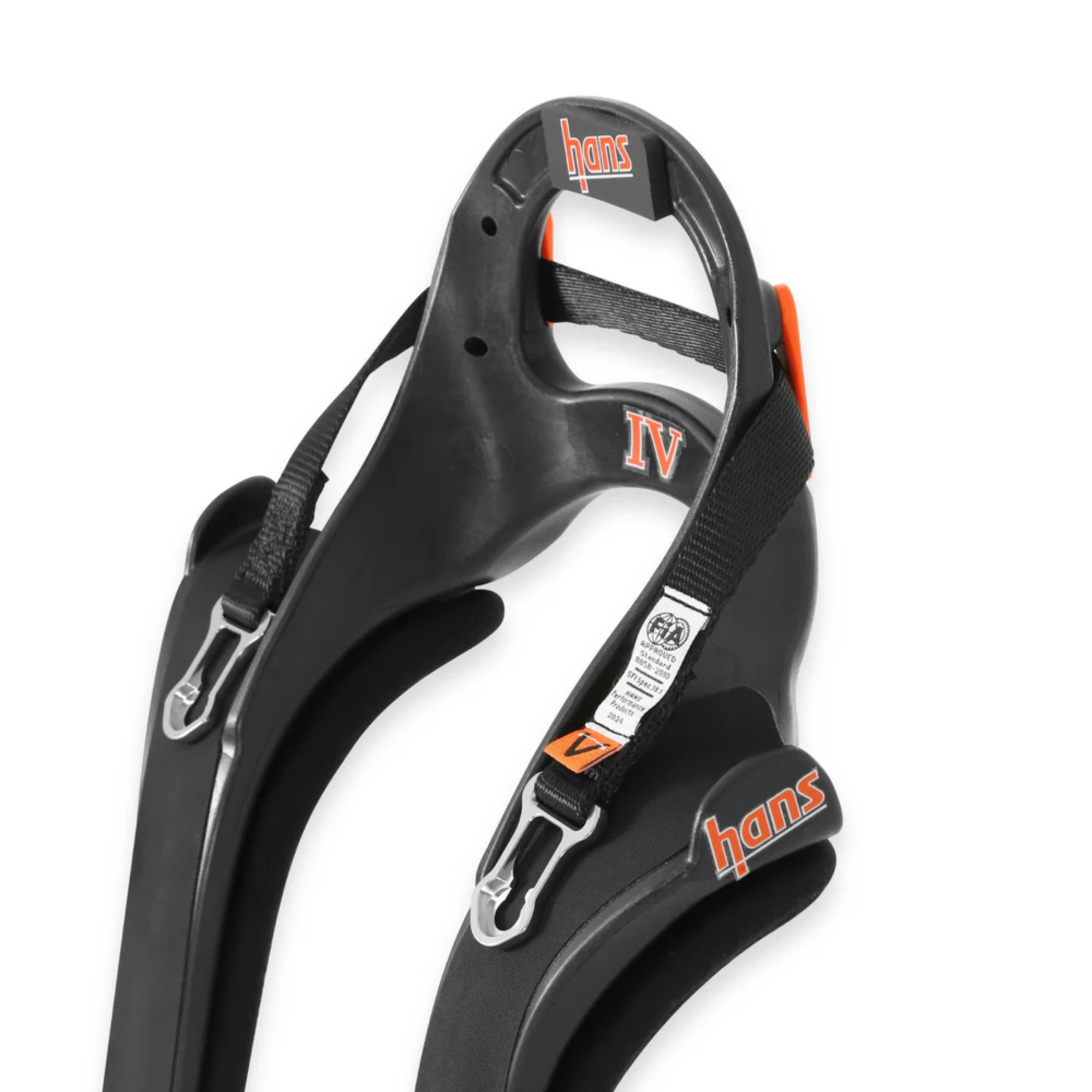

The Hans IV SFI/FIA Device - Post Anchor from HANS showing the shoulder in detail.

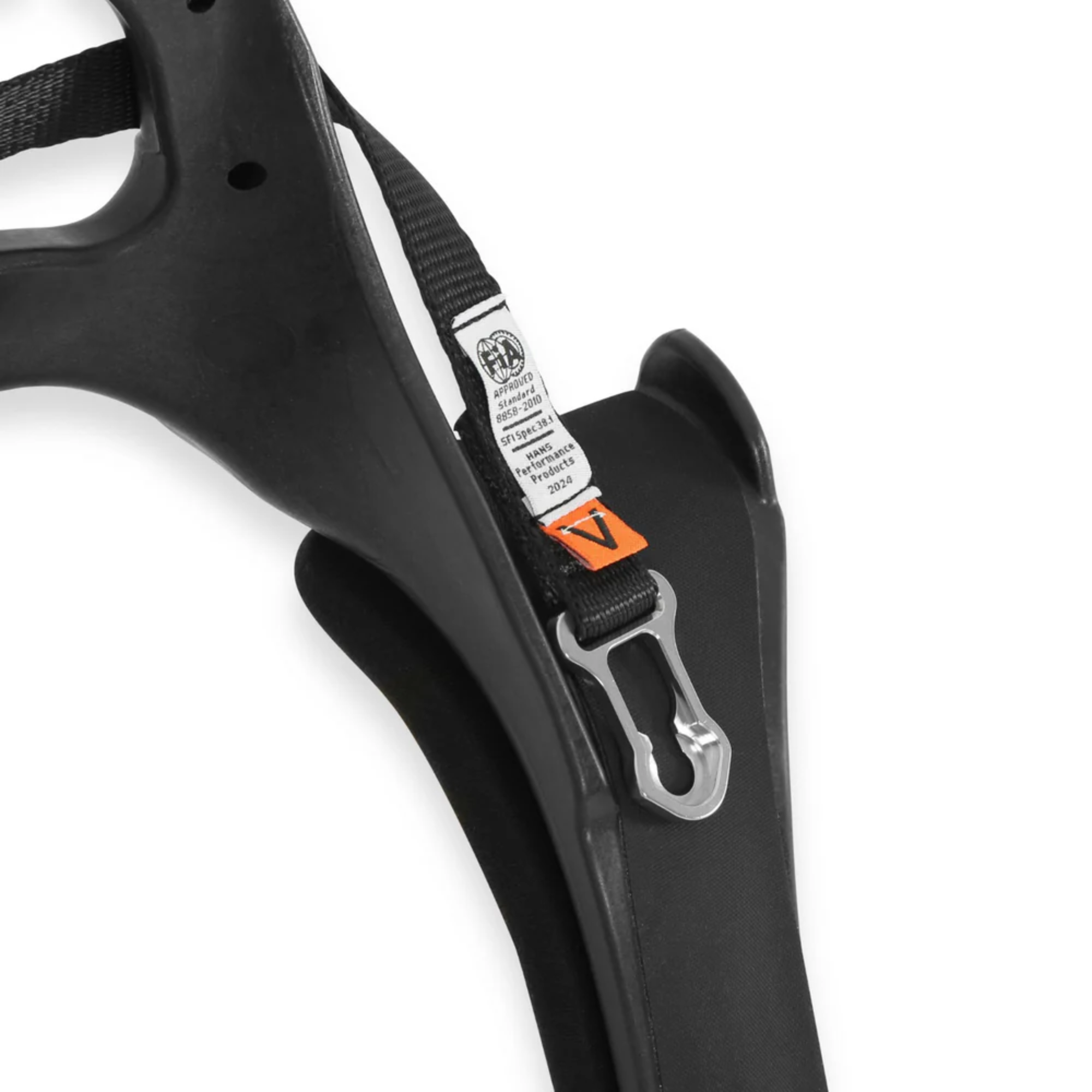

The Hans IV SFI/FIA Device - Post Anchor from HANS showing the strap and buckle close up.
The hans sizing guide size chart for hans devices. all-groups

Hans IV SFI/FIA Device - Post Anchor

$434.95
By HANS
Size

The industry's gold standard just got an upgrade. The HANS IV takes the proven safety of the HANS III and sheds 10% of its weight, reducing neck fatigue during long sessions. Engineered for the modern cockpit, it features an all-new 20-degree angle perfect for most upright seating positions. We’ve also overhauled the driver interface with custom-molded, high-density foam pads that "nest" into the device to eliminate slippage and provide superior shoulder support. Now available in three sizes to ensure a tailored fit, the HANS IV is the ultimate performance-to-value choice for entry-level and club racers alike.

Features

• 10% Lighter than previous models
• SFI 38.1 and FIA 8858 certified
• Improved harness retention so belts will not slip
• Custom molded pads nest in the device to prevent pads from slipping. Foam is a perfect blend for comfort and support
• More available sizes to fit more drivers
• 3 Different Sizes – Small, Medium and Large
• The best price on a HANS device on the market
• Three different anchor options: Post Anchor (standard), Quick Click (SFI only), M61 (Sold Separately)
• Includes helmet post anchors
Technical Details

• Rating: SFI 38.1
HANS Installation Instructions

Most modern Snell SA2015 and later and/or FIA8858/FIA8860/FIA8859 helmets have threaded mounting posts bonded into the helmet shell. This allows for very quick and easy installation without the need for specialty tools or helmet modification. If your helmet does not have these threaded mounting points, please get in touch with us for assistance.

Tools needed for installation:

  • 5/32 or 4mm Allen Key (put down your impact gun - either size will fit)
  • Hans Anchor Key/Wrench (not included) OR Hans Tether attached to your device

Instructions:

  1. Using the entire anchor, thread it onto the terminal on the helmet. Note that threadlocker has been pre-applied to the anchor's thread. If transferring the anchor to a new helmet, fresh threadlocker is recommended.
  2. Hand-tighten the screw until snug, making sure the point on the anchor faces rearward. When installing Quick-Click-style anchors, the opening hasp should point rearward. (Click here for sample image)
  3. Tighten the screw a ¼ turn past snug. You may need to hold the anchor still while tightening to ensure the point on the anchor remains facing rearward. This can be accomplished with the flat edge of a connected tether or using the specialty Hans Anchor Key (or similar flat spanner wrench). Note: Not a lot of force is needed to tighten this screw - if you are having problems keeping the point on the anchor in place, you're probably over-tightening! Overtightening can easily break the bonded anchor terminal and/or otherwise damage your helmet!
  4. Test your installation by connecting the Hans tether to the anchor and makeing sure it slides on/off with little resistance. If the anchor is installed too tightly, it will feel tight.
  5. That's it!
SKU: HAH4PA-SML
