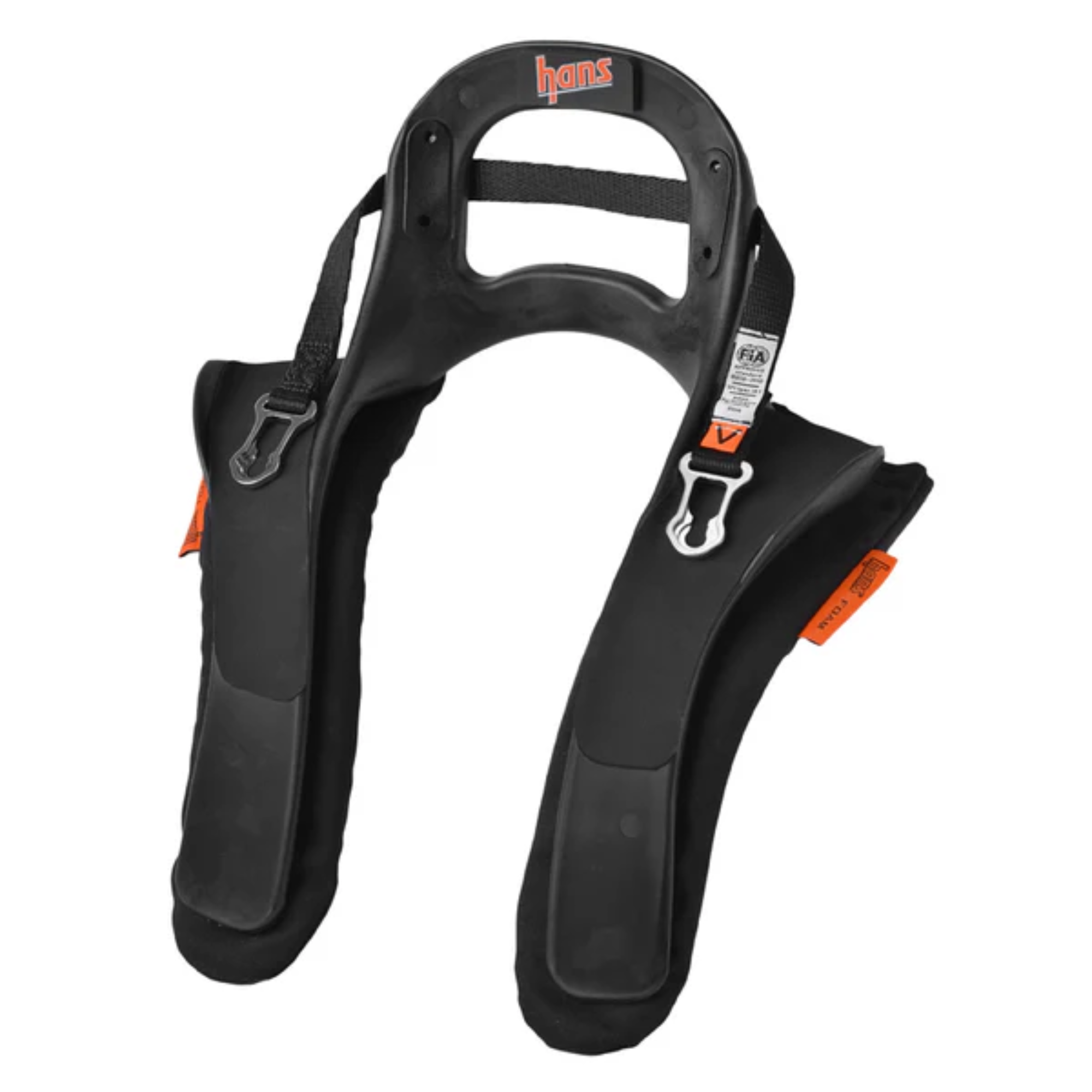

The medium size HANS III 20M FIA Device from HANS with Post Anchors.
The hans sizing guide size chart for hans devices. all-groups

HANS III 20M FIA Device - Medium, Post Anchors

$470.95
By HANS

Engineered for the racer who demands both agility and uncompromising safety. The HANS III features a revolutionary hollow-collar design that substantially reduces weight without sacrificing structural integrity. By strategically reinforcing high-stress zones, this injection-molded device provides the same elite level of protection as professional carbon-fiber units. Its sculpted, round-collar profile—refined for driver comfort—ensures effortless entry and exit from the cockpit, making it the perfect choice for competitive drivers looking for a "barely-there" feel during high-G maneuvers.

Features

• Sliding Tethers standard
• FIA approved
• Injection Molded super structural construction
• Hollow collar minimizes weight
• Weighs 200g less then the Sport 2 and 100g more then the Carbon Pro models
• Hollow collar to minimize weight
• Includes 2 M6 Anchors (enough for one helmet)
• FIA rating is equivalent to SFI 38.1 rating and accepted by all US and International Road Racing organizations.
Technical Details

• Rating: FIA 8858
HANS Installation Instructions

Most modern Snell SA2015 and later and/or FIA8858/FIA8860/FIA8859 helmets have threaded mounting posts bonded into the helmet shell. This allows for very quick and easy installation without the need for specialty tools or helmet modification. If your helmet does not have these threaded mounting points, please get in touch with us for assistance.

Tools needed for installation:

  • 5/32 or 4mm Allen Key (put down your impact gun - either size will fit)
  • Hans Anchor Key/Wrench (not included) OR Hans Tether attached to your device

Instructions:

  1. Using the entire anchor, thread it onto the terminal on the helmet. Note that threadlocker has been pre-applied to the anchor's thread. If transferring the anchor to a new helmet, fresh threadlocker is recommended.
  2. Hand-tighten the screw until snug, making sure the point on the anchor faces rearward. When installing Quick-Click-style anchors, the opening hasp should point rearward. (Click here for sample image)
  3. Tighten the screw a ¼ turn past snug. You may need to hold the anchor still while tightening to ensure the point on the anchor remains facing rearward. This can be accomplished with the flat edge of a connected tether or using the specialty Hans Anchor Key (or similar flat spanner wrench). Note: Not a lot of force is needed to tighten this screw - if you are having problems keeping the point on the anchor in place, you're probably over-tightening! Overtightening can easily break the bonded anchor terminal and/or otherwise damage your helmet!
  4. Test your installation by connecting the Hans tether to the anchor and makeing sure it slides on/off with little resistance. If the anchor is installed too tightly, it will feel tight.
  5. That's it!
SKU: HADK14237-31-FIA
