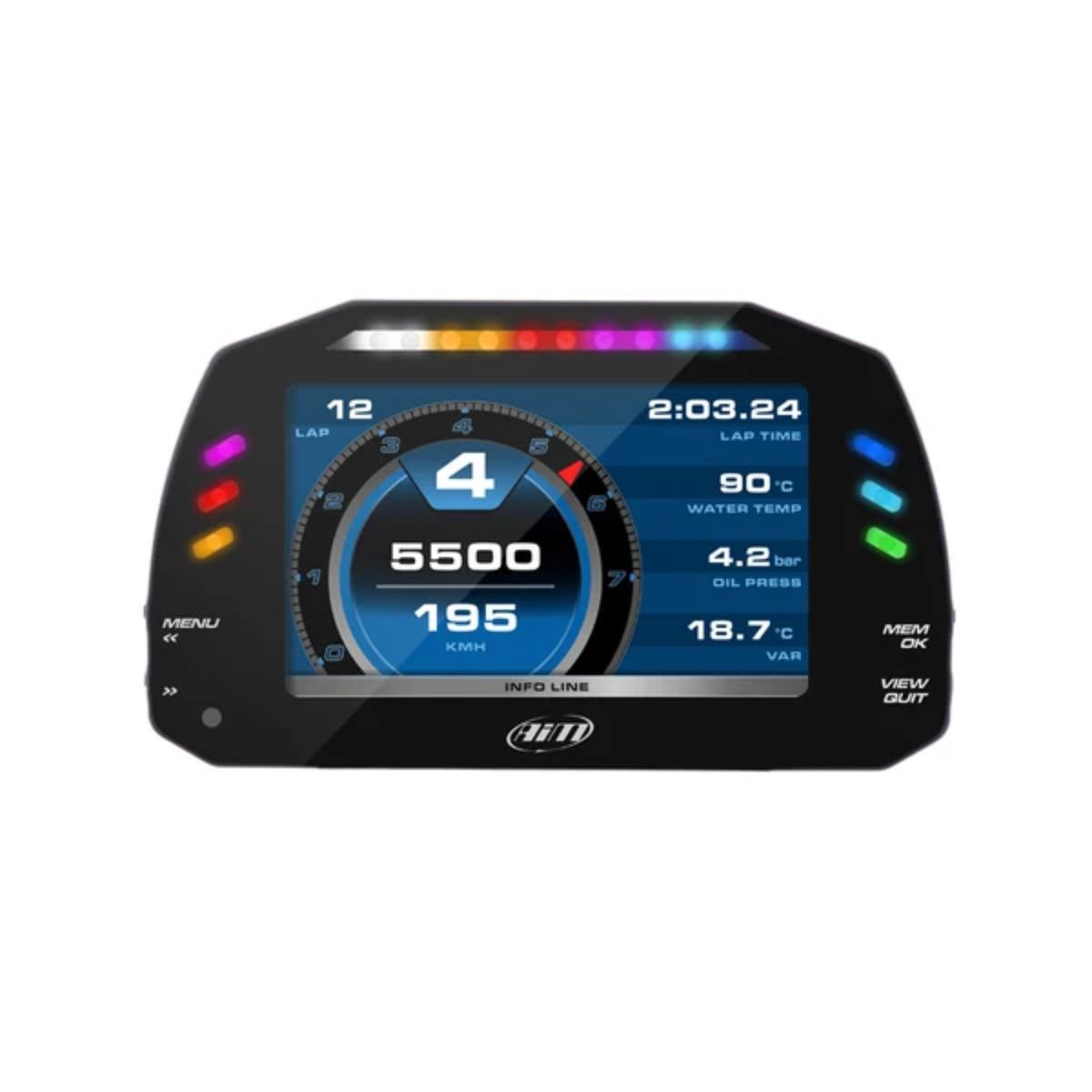

The AIM MXS 1.3 Dash Data Logger with a blue display showing lap time, car water temp, oil pressure, speed, RPM and lap count.
The AIM MXS 1.3 Dash Data Logger with a teal data display showing speed, RPM, gear, lap count, lap time, water temp and oil pressure.

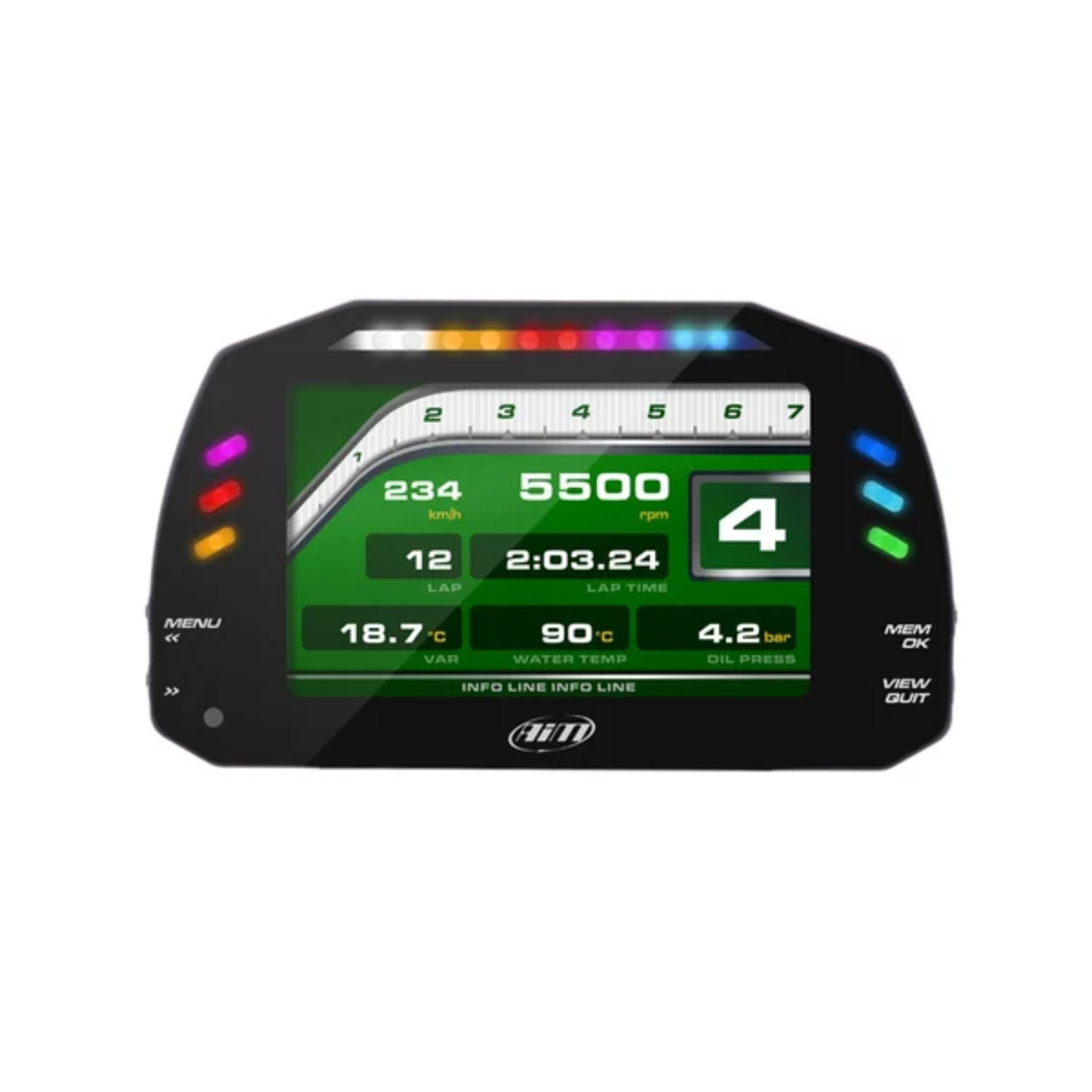

The AIM MXS 1.3 Dash Data Logger using a green display to show essential car data such as gear, rpm and speed.

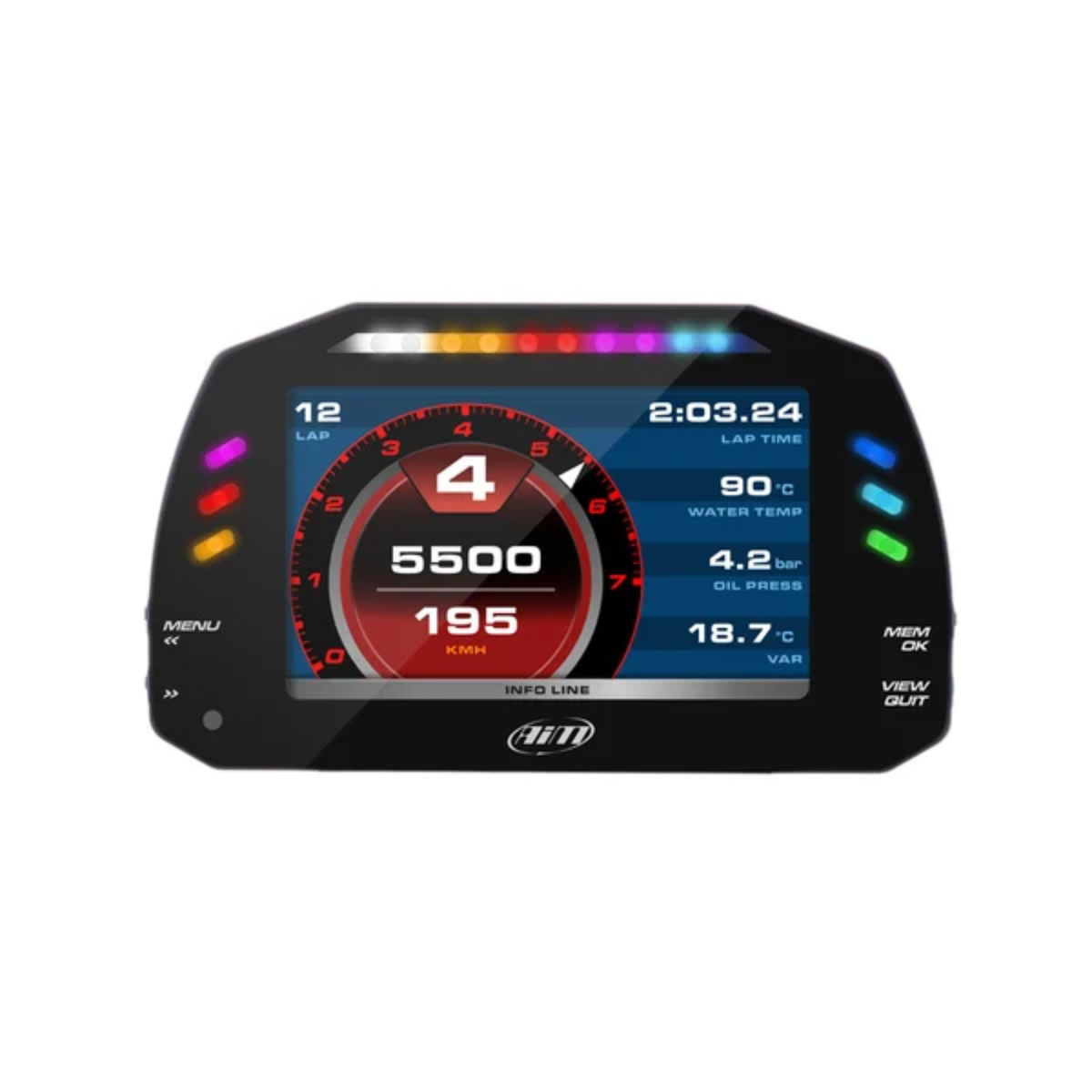

The AIM MXS 1.3 Dash Data Logger with a blue and red display showing motorsports data such as lap time, lap count, speed and rpm.

AIM MXS 1.3 Dash Data Logger

$2,899.00
By AIM
1 in stock
SKU: AIMMXS13

Packing all the exciting features of AIM's latest MXG system into an ultra-compact 5" display, the AiM MXS dash logger is built for precision data tracking. The full-color, high-contrast TFT LCD screen features fully customizable pages, allowing you to easily choose from a vast library of styles and define exactly which data is shown.

Features

• ECU Connection: Capable of acquiring data directly from the vehicle's ECU.
• Analog & Digital Inputs: 8 Analog inputs record up to 1000x per second each. 6 Digital inputs are also included.
• GPS Module: AiM's powerful GPS05 module is included in the kit for accurate lap-time and track position data
• Secondary CAN-line: CAN2 line manages data from additional modules, such as ABS, traction control, etc.
• Internal Accelerometer & Gyro: Internal 3-Axial accelerometer and a gyroscope for crucial vehicle motion data.
• Math Channels: Configure the dash to immediately display Math Channel values, such as brake bias or a calculated gear.
Technical Details

• Part Number: AIMMXS13
• Manufacturer: X21MXSGPS400
